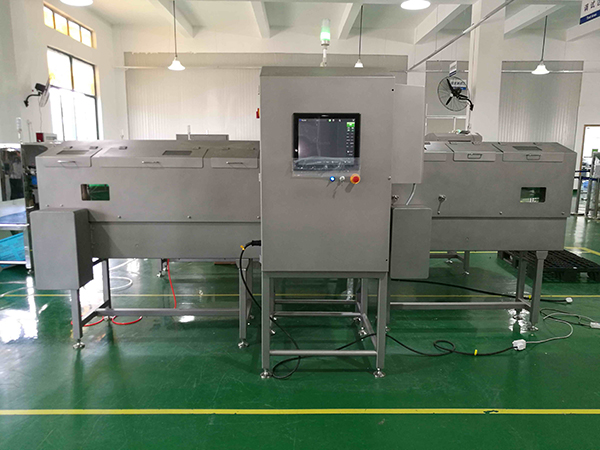

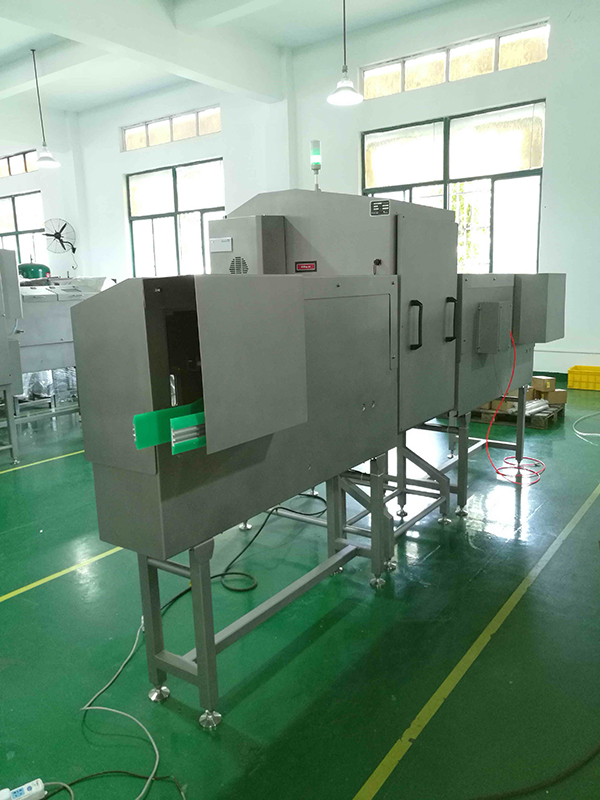

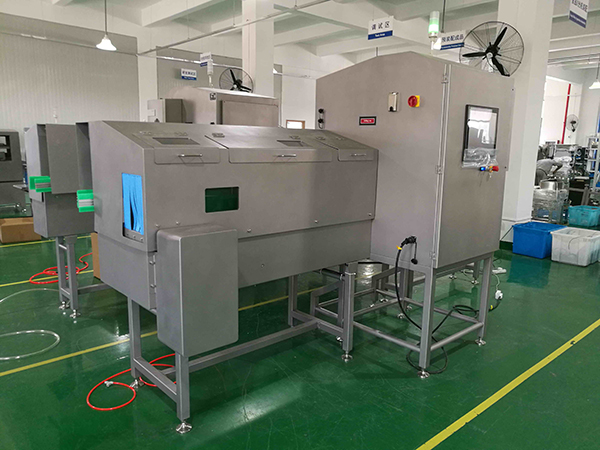

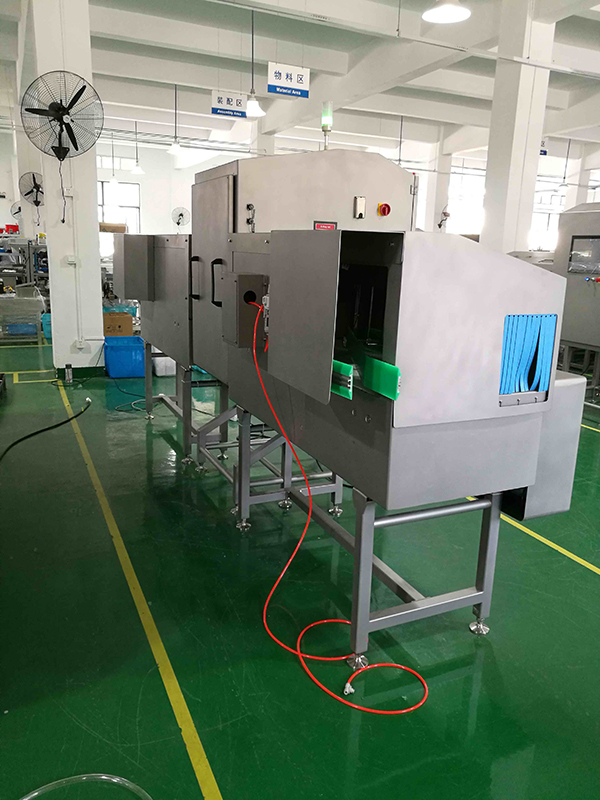

Inclined upward X-ray inspection system
*Product Introduction:
Inclined upward single beam X-ray machine is with special design, suitable for bottles or jars in standing conditions.
Inclined upward single beam X-ray is with strong X-ray power, suitable for inspection of jars, bottles, etc.
Inclined upward single beam X-ray can reach high capacity.
The price of inclined upward single beam X-ray is competitive.
*Parameter
| Model |
TXR-1630SH |
| X-ray Tube |
MAX. 120kV, 480W |
| Max Detecting Width |
160mm |
| Max Detecting Height |
260mm |
| Best Inspection Ability |
Stainless steel ball Φ0.5mm Stainless steel wire Φ0.3*2mm Glass/Ceramic ball Φ1.5mm |
| Conveyor Speed |
10-60m/min |
| O/S |
Windows 7 |
| Protection Method |
Protective tunnel |
| X-ray Leakage |
< 0.5 μSv/h |
| IP Rate |
IP54 (Standard), IP65 (Optional) |
| Working Environment |
Temperature: -10~40℃ |
|
Humidity:30~90%, no dew |
|
| Cooling Method |
Industrial air conditioning |
| Rejecter Mode |
Push rejecter |
| Air Pressure |
0.8Mpa |
| Power Supply |
3.5kW |
| Main Material |
SUS304 |
| Surface Treatment |
Mirror polished/Sand blasted |
*Note
The technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt. The actual sensitivity would be affected according to the products being inspected.
*Packing
*Factory Tour
