Compact Economical X-ray Inspection System For Food Package

Short Description:

Competitive price Good sensitivity and stability


Product Detail

Video

Product Tags

*Product Introduction:


Competitive price
Good sensitivity and stability
*Parameter


Model

TXE-1815

TXE-2815

TXE-3815

X-ray Tube

MAX. 80W/65kV

Inspection Width

180mm

280mm

380mm

Inspection Height

150mm

Best Inspection Ability

Stainless steel ball Φ0.5mm

Stainless steel wire Φ0.3*2mm

Glass/Ceramic ball Φ1.5mm

Conveyor Speed

5-90m/min

O/S

Windows 7

Protection Method

Soft curtain

X-ray Leakage

< 1 μSv/h

IP Rate

IP54IP65 Optional

Working Environment Temperature

-10~40℃

 0~40℃

Humidity

30~90%, no dew

Cooling Method

Industrial air conditioning

Reject Mode

Sound and light alarm, belt stops (Rejecter optional)

Air Pressure

0.8Mpa

Power Supply

0.8kW

Main Material

SUS304

Surface Treatment

Brushed SUS

*Note


The technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt. The actual sensitivity would be affected according to the products being inspected.

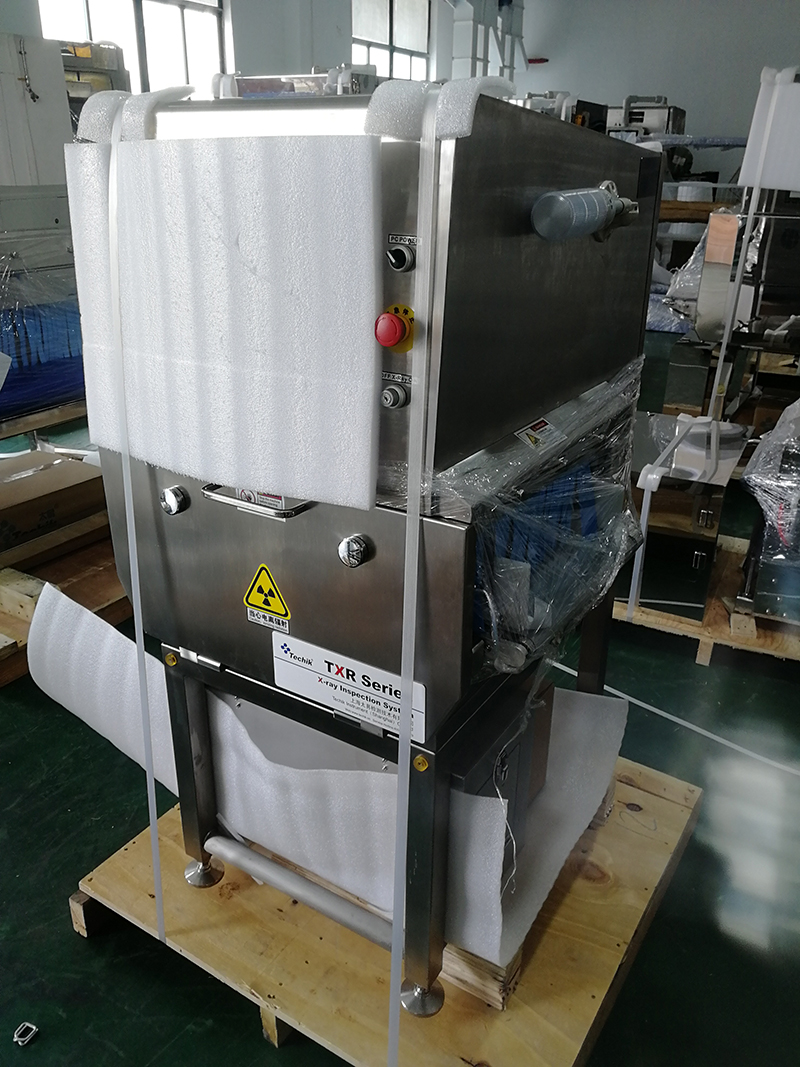

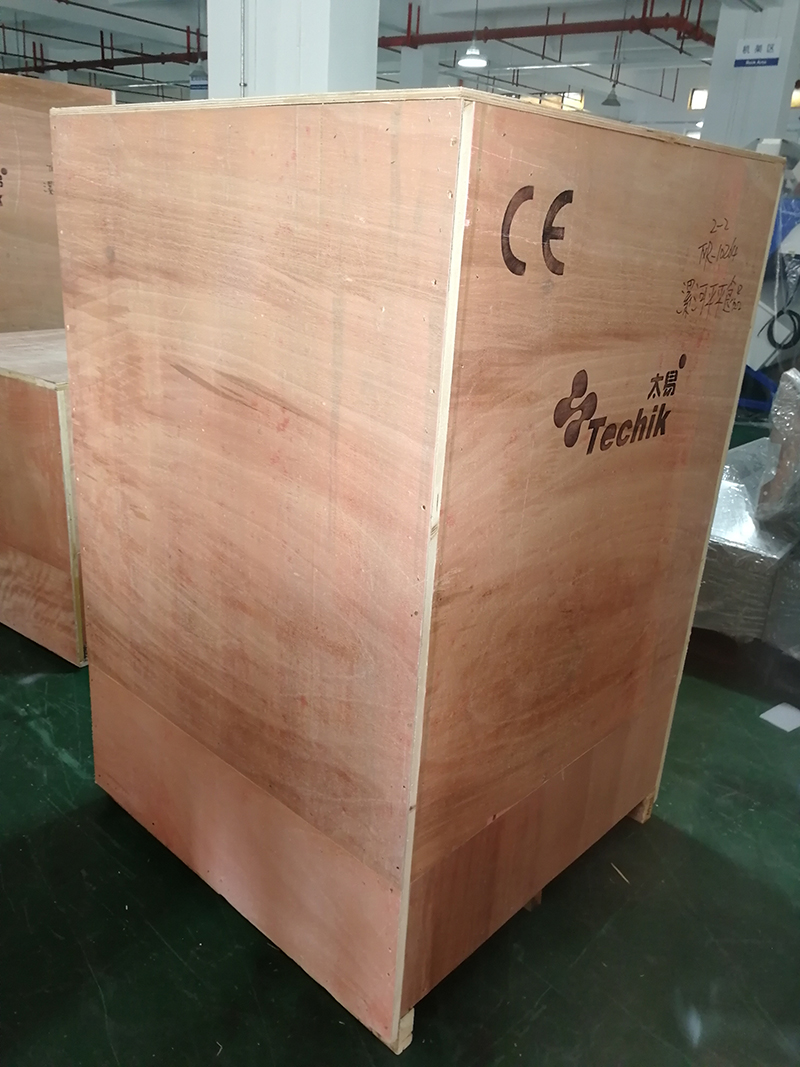

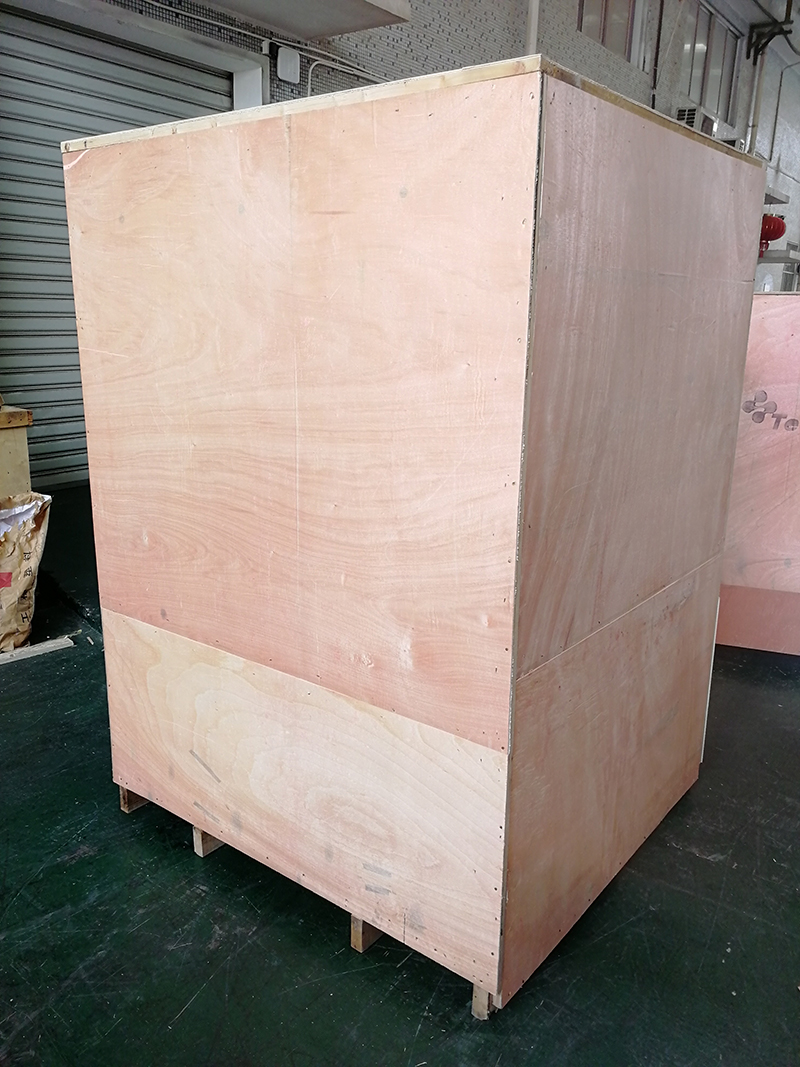

*Packing


3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

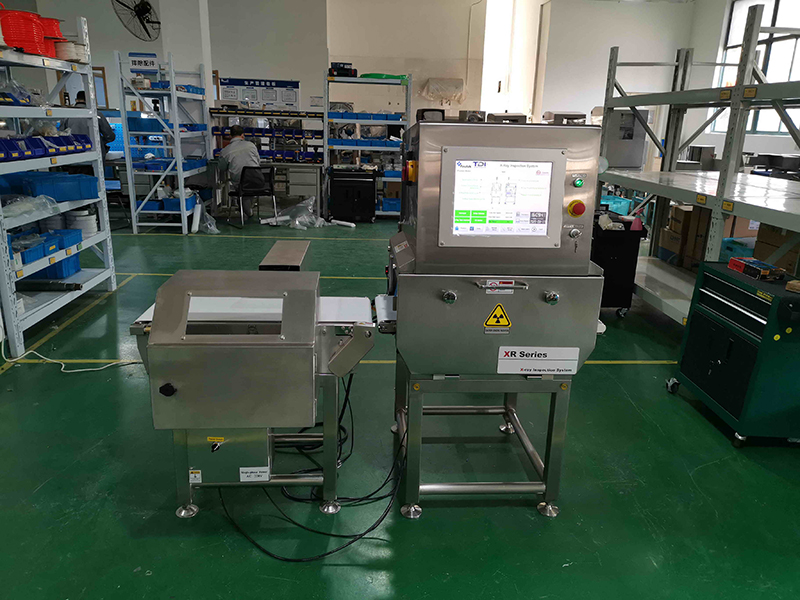

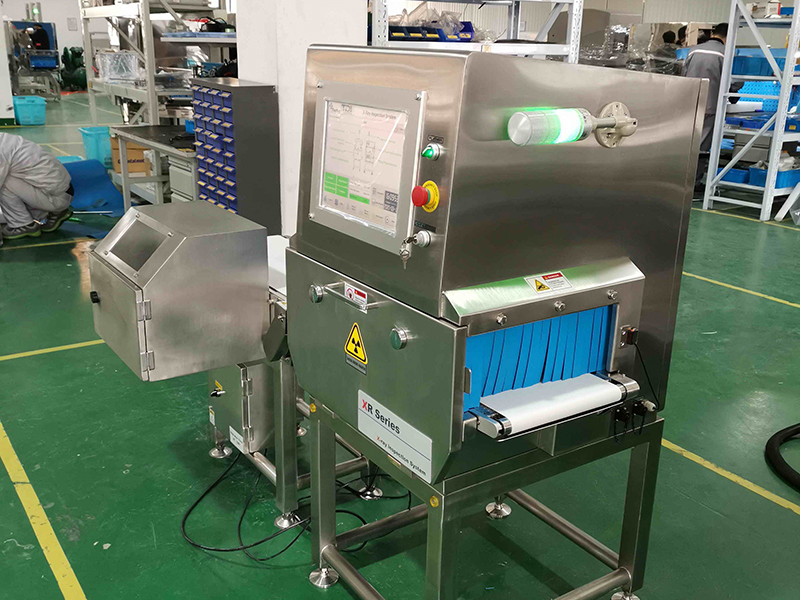

*Factory Tour


3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328
