TXRFA X-Ray Inspection System for Fat Content Analysis
Inline X-Ray Fat Content Analysis for Meat Processing
The Techik TXRFA Series brings fat content analysis, contaminant detection and weight inspection together in one inline system. Designed for bulk and boxed meat, it uses dual-energy X-ray technology and a dedicated high-definition fat analysis detector to measure the fat content of raw materials while checking for contaminants such as metal, glass and hard bone.
Detector signals are processed by Techik’s proprietary algorithms and deep-learning recognition technology. Techik’s large AI model is designed to improve inspection accuracy and reduce false detections. Real-time fat information can support manual or automatic blend adjustment toward the target lean-to-fat ratio.
Key Benefits
• Dual-energy technology distinguishes materials by composition.
• Real-time inline fat percentage analysis using proprietary algorithms.
• Simultaneous fat analysis, contaminant detection and weight inspection.
• Detection of metal, glass and hard bone in bulk and boxed meat.
• Hygienic design for meat-processing environments, with optional IP69K protection for easier washdown.
• An integrated layout can reduce the need for separate equipment, helping save floor space, labor and capital investment.
Applications
The TXRFA Series is designed for bulk and boxed meat. Select the model and inspection configuration according to product format, dimensions, maximum belt load, fat-analysis requirements and production conditions. Actual inspection performance must be confirmed with the product to be processed.
Detection and Fat-Analysis Principle

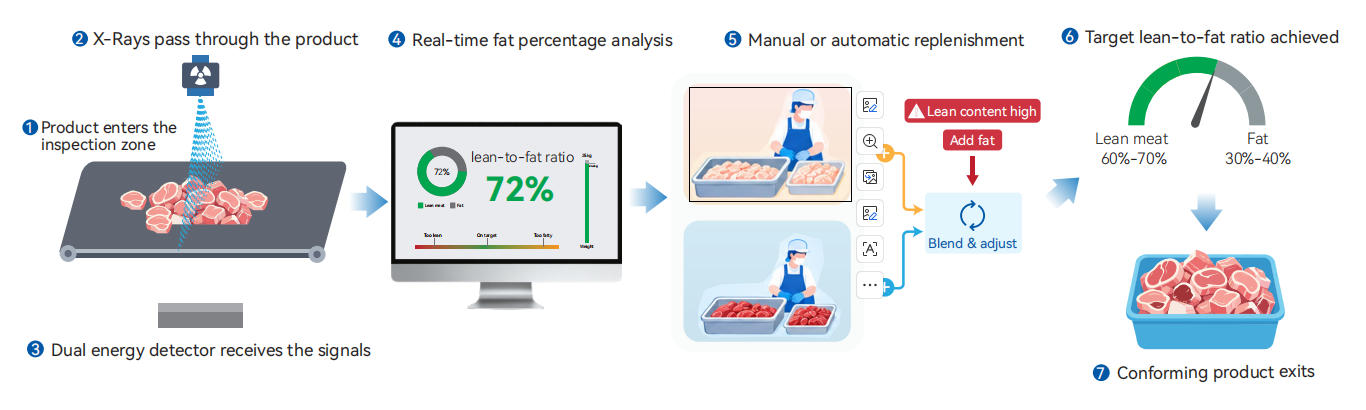

1. The product enters the inspection zone.
2. X-rays pass through the product.
3. The dual-energy detector receives the signals.
4. The system performs real-time fat percentage analysis.
5. The result guides manual or automatic replenishment and blend adjustment.
6. The process moves toward the configured target lean-to-fat ratio.
7. The conforming product exits the system.
The replenishment method, target ratio and integration with upstream or downstream equipment are application-specific and should be defined for the production process.
Inspection Capability
| Inspection Need | TXRFA Capability | Application Consideration |
| Fat content | Inline, real-time fat content analysis | Supports lean-to-fat ratio adjustment decisions |
| Foreign bodies | Detection of metal, glass and hard bone | Performance depends on the product being inspected |
| Product weight | Weight inspection within the same system | Define the required weight checks for the application |
Model Specifications
| Specification | TXRFA-G3-4016 | TXRFA-G3-4030 | TXRFA-G3-6030 | TXRFA-G3-8040 |
| X-Ray Source | 350 W / 500 W options | 350 W / 500 W options | 500 W | 500 W |
| X-Ray Detector | Dedicated high-definition fat analysis detector: 0.4 / 0.1 options | Dedicated high-definition fat analysis detector: 0.4 / 0.1 options | Dedicated high-definition fat analysis detector: 0.8 | Dedicated high-definition fat analysis detector: 0.8 |
| Aperture Width | 400 mm | 400 mm | 600 mm | 800 mm |
| Aperture Height | 160 mm | 300 mm | 300 mm | 400 mm |
| Belt Speed | 10–40 m/min | 10–40 m/min | 10–40 m/min | 10–40 m/min |
| Overall Dimensions | 1000 × 1150 × 1950 mm | 1400 × 1150 × 2150 mm | 1400 × 1350 × 2150 mm | 1400 × 1550 × 2250 mm |
| Maximum Belt Load | 10 kg | 10 kg | 25 kg | 25 kg |
Common Specifications and Configuration Options
| Specification | Value |
| Power Supply | AC 220 V, 1.5 kVA, 50/60 Hz |
| Product Format | Bulk and boxed meat |
| Radiation Safety | Below 1 μSv/h; safety shielding prevents X-ray leakage |
| Rejection Method | Stop on reject (NG stop); automatic rejection |
| Alarm | Audible and visual alarm |
| Conveyor Belt Material | Food-grade PU |
| Display | Touchscreen |
| Operation | Touch input |
| Ingress Protection | Product passage: IP66; IP69K protection optional |
| Interfaces | LAN and USB ports |
| Display Languages | Chinese, English and other language options |
Specification Notes
• Detection accuracy figures were measured under no-load conditions; actual detection accuracy is subject to the specifications of the product being tested.
• The listed machine specifications are standard. Other dimensions and special requirements can be custom-built.
• Products are subject to change without prior notice. The actual machine shall prevail; consult your Techik sales representative for details.
Designed for Meat-Processing Lines
Multiple inspection functions in one system
Combining fat analysis, contaminant detection and weight inspection can simplify the inspection layout and reduce the need for separate inline machines.
Hygienic construction and washdown options
The product passage is rated IP66. Optional IP69K protection is available for applications requiring more demanding washdown capability. Specify cleaning procedures and environmental requirements when selecting the configuration.
Touchscreen operation and connectivity
A touchscreen provides touch input for operation. LAN and USB ports provide connectivity, and Chinese, English and other language options are available.
Product Details

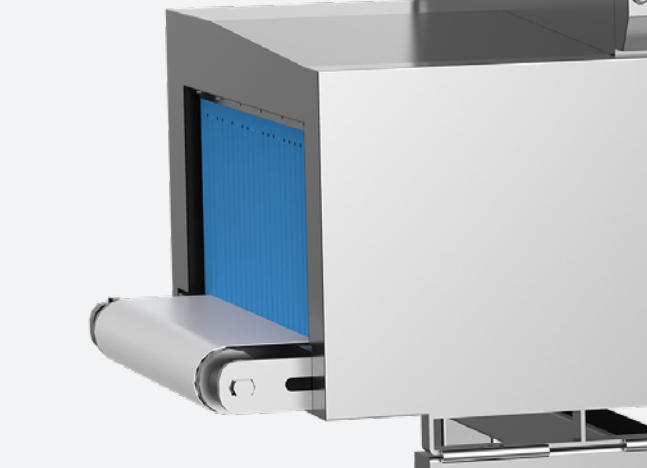

• Product infeed system.

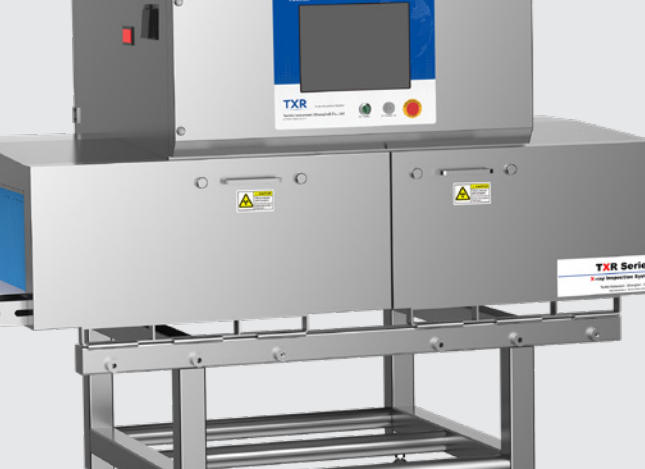

• Dual-energy inspection chamber.

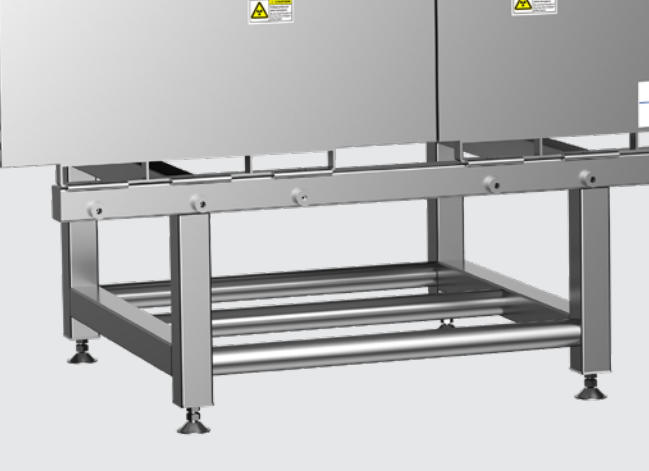

• Rigid frame and base.

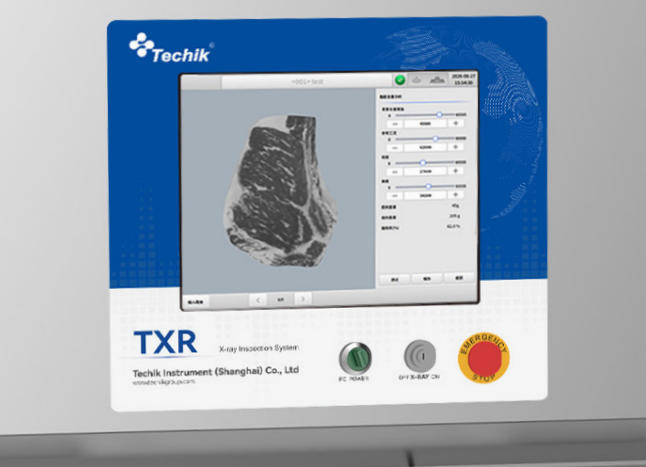

• Intelligent touchscreen control system.
Frequently Asked Questions
The system is designed for bulk and boxed meat. Product dimensions, presentation and maximum belt load determine the appropriate model.
Yes. The TXRFA Series combines inline fat content analysis with detection of metal, glass and hard bone, together with weight inspection.
Real-time fat content information can guide manual or automatic replenishment and blend adjustment. The replenishment equipment and integration requirements are defined for the application.
No. The product passage is rated IP66, while IP69K protection is optional. Cleaning and washdown requirements should be specified during configuration.
Request a Fat-Analysis Assessment
Share the meat product format, product or box dimensions, maximum belt load, required throughput and available installation space. Include the target fat range, analysis requirements, contaminants of concern, weight criteria, rejection method and washdown requirements so Techik can recommend a suitable TXRFA configuration.
