XCV Combo X-Ray, Checkweighing & Vision Inspection System
Integrated X-Ray, Checkweighing and Optional Vision Inspection
The Techik XCV Series integrates intelligent X-ray inspection and dynamic checkweighing in a single unit, with optional top and bottom vision inspection. The system can inspect internal foreign bodies and defects while checking product weight, and the optional vision configuration can extend inspection to surface contaminants, visual flaws, seal defects and coding errors.
Combining several inspection functions can replace multiple inline machines, increase inspection efficiency and reduce installation space and total ownership cost. Final inspection coverage depends on the product, packaging format and selected configuration.
Key Benefits
• Integrated X-ray inspection and dynamic checkweighing in one system.
• Optional top and bottom vision inspection for external surface and packaging checks.
• Built-in intelligent detection algorithms designed for stable recognition, anti-interference performance and complex products.
• IoT-ready interfaces, smart alerts, remote maintenance support and time-stamped traceability records.
• Quick-release belts and curtains for easier daily cleaning and maintenance.
• Six models covering standard, high-precision and long-pack applications.
Inspection Capability
| Inspection Need | XCV Capability | Selection Consideration |
| Internal foreign bodies and defects | Intelligent X-ray inspection | Actual sensitivity depends on the inspected product |
| Weight deviations | Dynamic checkweighing | Select the model for product weight, dimensions and required output |
| Surface contaminants and visual flaws | Optional top and bottom vision inspection | Confirm the camera configuration and inspected surfaces |
| Seal defects and coding errors | X-ray and optional vision inspection | Confirm the relevant defect types for the packaging |
Three Inspection Functions in One Unit
Inspect inside the package with X-ray technology
The X-ray system examines products for internal foreign bodies and defects. Listed sensitivity values for SUS304, glass and ceramic test pieces are empty-machine test results; actual sensitivity depends on the product being inspected.
Check product weight dynamically
The integrated checkweigher identifies weight deviations while products move through the system. Across the range, listed weighing capacities extend from 2–600 g for high-precision models to 20–6,000 g for long-pack models.
Add top and bottom vision inspection where required
Optional top and bottom vision inspection can support checks for surface contamination, visual flaws, seal defects and coding errors. Vision inspection is optional, so camera configuration and inspection coverage should be defined for the application.
Standard Models
| Specification | XCV-2215-G | XCV-3015-G |
| Inspection Width | 220 mm | 300 mm |
| Inspection Height | 150 mm | 150 mm |
| Weighing Range | 10–2000 g | 10–2000 g |
| Scale Interval | 0.1 g | 0.1 g |
| Weighing Accuracy | ≥ ±0.2 g | ≥ ±0.3 g |
| Maximum Throughput | 250 pcs/min | 200 pcs/min |
| Conveyor Speed | ≤ 90 m/min | ≤ 90 m/min |
| Maximum Product Width | 210 mm | 290 mm |
| Product Length Options | 200 mm / 300 mm | 250 mm / 350 mm |
| X-Ray Conveyor Length | 600 mm | 600 mm |
| Weighing Conveyor Length | 300 mm / 400 mm | 350 mm / 450 mm |
| Additional Function | Automatic Verification Function | Automatic Verification Function |
| Protection Rating | Product tunnel IP65 | Product tunnel IP65 |
High-Precision Models
| Specification | XCV-1515-H | XCV-2215-H |
| Inspection Width | 150 mm | 220 mm |
| Inspection Height | 150 mm | 150 mm |
| Weighing Range | 2–600 g | 2–600 g |
| Scale Interval | 0.01 g | 0.02 g |
| Weighing Accuracy | ≥ ±0.1 g | ≥ ±0.15 g |
| Maximum Throughput | 300 pcs/min | 250 pcs/min |
| Conveyor Speed | ≤ 120 m/min | ≤ 120 m/min |
| Maximum Product Width | 140 mm | 210 mm |
| Product Length Options | 170 mm / 200 mm | 200 mm / 250 mm |
| X-Ray Conveyor Length | 455 mm | 455 mm |
| Weighing Conveyor Length | 250 mm / 300 mm | 300 mm / 350 mm |
| Additional Function | Automatic Equipment Performance Verification Function | Automatic Equipment Performance Verification Function |
| Protection Rating | Product tunnel IP65 | Product tunnel IP65 |
Long-Pack Models
| Specification | XCV-3025-G | XCV-4025-G |
| Inspection Width | 300 mm | 400 mm |
| Inspection Height | 250 mm | 250 mm |
| Weighing Range | 20–6000 g | 20–6000 g |
| Scale Interval | 0.1 g | 0.2 g |
| Weighing Accuracy | ≥ ±0.3 g | ≥ ±0.5 g |
| Maximum Throughput | 120 pcs/min | 120 pcs/min |
| Conveyor Speed | ≤ 70 m/min | ≤ 70 m/min |
| Maximum Product Width | 290 mm | 390 mm |
| Product Length Options | 400 mm / 500 mm | 400 mm / 500 mm |
| X-Ray Conveyor Length | 350 mm | 350 mm |
| Weighing Conveyor Length | 500 mm / 600 mm | 500 mm / 600 mm |
| Additional Function | Automatic Equipment Performance Verification Function | Automatic Equipment Performance Verification Function |
| Protection Rating | Product tunnel IP66 | Product tunnel IP66 |
Series-Wide Specifications and Options
| Specification | Value |
| X-Ray Tube | 210 W / 350 W (optional) |
| SUS304 Ball Sensitivity (Ø) | 0.3 mm |
| SUS304 Wire Sensitivity | 0.2 × 2 mm |
| Glass Ball Sensitivity (Ø) | 0.8 mm |
| Ceramic Ball Sensitivity (Ø) | 0.8 mm |
| Vision Inspection | Top and bottom vision inspection (optional) |
| Conveyor Height | 550–1050 ± 50 mm |
| Operation Screen | 17-inch touchscreen |
| Product Memory Capacity | Storage for 999 products |
| Reject Method | Air jet, pusher, drop flap, swing arm or flip rejector |
| Power Supply | AC 220 V, 50/60 Hz |
| Main Material | Stainless steel 304 |
| Surface Treatment | Brushed finish (standard); sandblasted finish or mirror finish (optional) |
Specification Notes
• Sensitivity figures are empty-machine test values; actual sensitivity depends on the product being inspected.
• Listed specifications are standard. Other dimensions and special requirements can be customized.
• Specifications are subject to change without notice. The actual machine prevails; contact your Techik sales representative for details.
• Scale interval is the displayed weight increment and is not the same as weighing accuracy.
Digital Management and Hygienic Operation
Connect inspection to digital production management
IoT-ready interfaces, smart alerts and remote maintenance support help connect the system to digital production management. Traceability records are time-stamped to the second.
Simplify routine cleaning
Quick-release belts and curtains simplify access for daily cleaning and maintenance. Stainless steel 304 construction and model-specific product-tunnel ratings support hygienic operation for food and pharmaceutical applications.
Inspection Examples

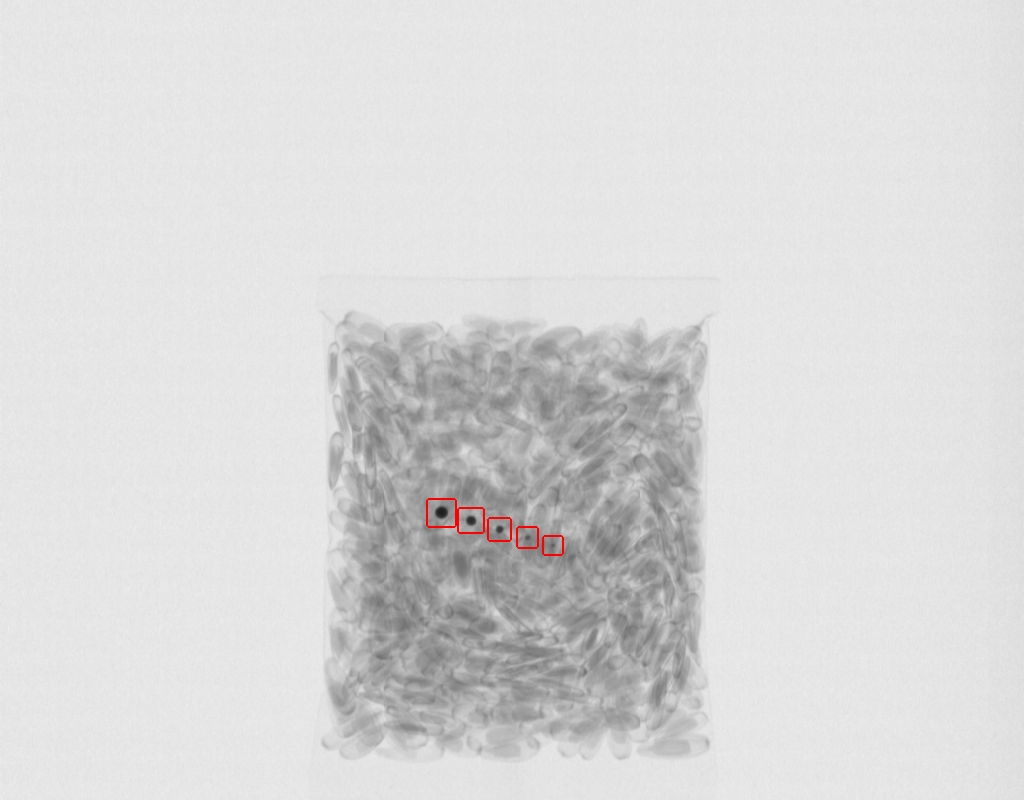

• Foreign body inside a bagged product — X-ray inspection image.
• Surface damage on a bagged product — vision inspection image.

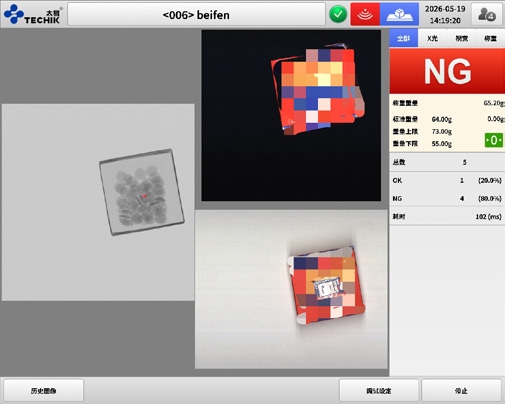

• Integrated X-ray, vision and checkweighing operator interface.

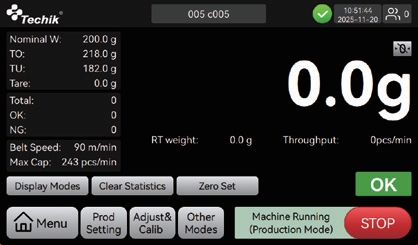

• Product weight display interface.
Frequently Asked Questions
No. The XCV Series integrates X-ray inspection and dynamic checkweighing. Top and bottom vision inspection is optional.
The XCV-1515-H and XCV-2215-H have a listed weighing range of 2–600 g. Compare product dimensions, scale interval, weighing accuracy and required throughput before selecting a model.
The system supports internal X-ray inspection and optional external vision checks. Relevant defect types and inspection coverage must be confirmed for the product and configuration.
No. The 0.3 mm value is an empty-machine test result. Actual sensitivity depends on the inspected product.
Yes. Other dimensions and special requirements can be customized. Provide the product dimensions and production-line requirements when requesting a configuration.
Request an Inspection Assessment
Share the product type, packaging format, dimensions, target weight, required throughput and contaminants or defects to be inspected. Include conveyor height, reject-method preferences and any requirement for top and bottom vision inspection so Techik can define the appropriate XCV configuration.
