Mini Color Sorter For Bulk Product

Short Description:

MINI COLOUR SORTER SERIES is specially designed for processors who require small handling capacity on rice, coffee beans, seeds, pulses, peanut, spices, cashew nuts, etc. it is suitable for small processors and millers, like farmers, coffee shops, academies and scientific research institutes…


Product Detail

Product Tags

*Ensuring pure and safe food with Advance Sorting Technology!


MINI COLOUR SORTER SERIES is specially designed for processors who require small handling capacity on rice, coffee beans, seeds, pulses, peanut, spices, cashew nuts, etc.
it is suitable for small processors and millers, like farmers, coffee shops, academies and scientific research institutes…

*FEATURES OF MINI SERIES

SMALL FOOTPRINT, SUPER PERFORMANCE

Due to a smaller size and light weight, MINI SERIES sorter can be easily installed and move to other places; Processors could manually feed raw material instead of installing elevator.

INTELLIGENT HMI

True Color 10“/15” Industrial GUI enables fast product changeovers and covers a wide range of user defined modes.

ELECTRICAL SYSTEM

All electric components are world recognized brands. Safety, sustainability and consistency can be assured in the long run.

CONSISTENT PERFOMRANCE

Customized ultra-clear Cameras able to recognize subtle discoloration and defects;

Own intellectual property software and algorithm, minimizes false rejection of grains;

Products manufactured follow high standard, assisted with advanced CAD design and CAM manufacturing technology, and guided by lean production concept, ensures the highest quality machinery.

COLOR SORTING + SIZING TECHNOLOGY

Industrial leading shape sorting technology, enables simultaneous color sorting and grading

*Parameter


Model

MINI 32

MINI 1T

MINI 2T

Voltage

180~240V, 50HZ

Power (kw)

0.6

0.8

1.4

Air Consumption (m3/min)

0.5

0.6

1.2

Throughput (t/h)

0.3~0.6

0.7~1.5

1~3

Weight (kg)

315

350

550

Dimension(LxWxH)(mm)

1205x400x1400

940x1650x1590

1250x1650x1590

Note The parameter based on test results on peanut with around 2% contamination; It varies depending upon different input and contamination.

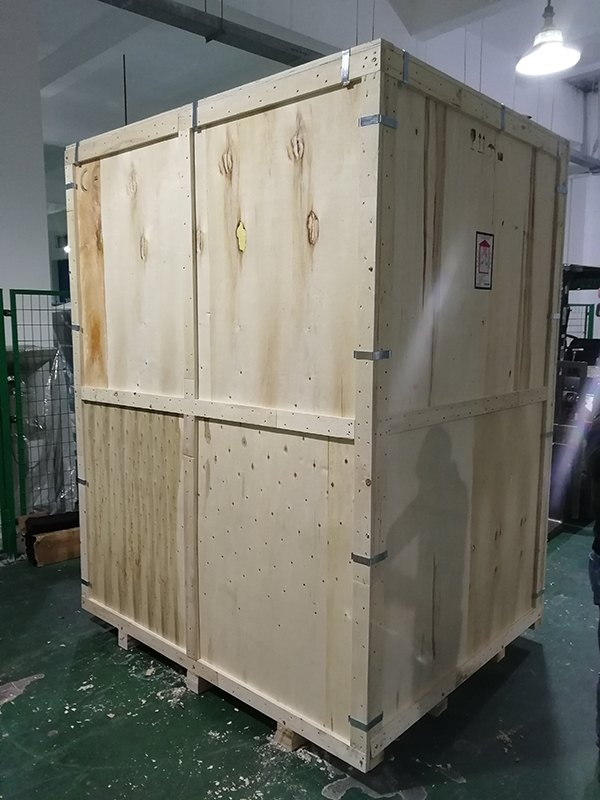

*Packing


3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

*Factory Tour


3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328
