Full Digital X-ray for fish bones
*Product Introduction:
TDI camera, high resolution, tiny fish bones also can be clearly shown

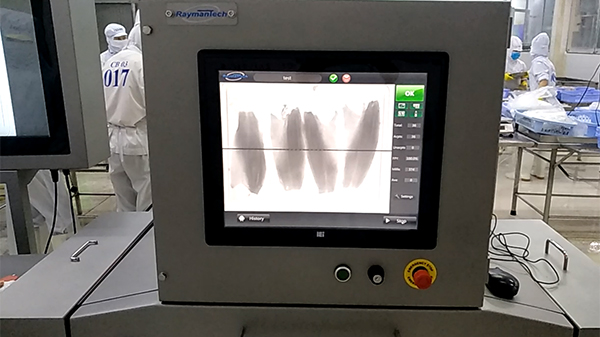

External HD screen, high identification of fish bones
*Parameter
| Model |
TXR-2080F |
TXR-4080F |
| X-ray Tube |
MAX. 80kV, 350W |
|
| Inspection Width |
200mm |
400mm |
| Inspection Height |
100mm |
100mm |
| Best Inspection Sensitivity
(Without Product) |
Stainless steel ballΦ0.2mm Stainless steel wireΦ0.15*2mm Fish bone Φ0.2*2mm |
|
| Conveyor Speed |
10-18m/min(10-30m/min) |
10-18m/min |
| Operation System |
Windows 7 |
|
| Power Supply |
1.5kVA |
|
| Alarm Mode |
Sound and light alarm, belt stop (Rejecter optional) |
|
| Level of Protection |
IP66 (Under belt) |
|
| Temperature Adjustment |
Industrial air conditioning |
|
| X-ray Emissions |
< 0.5 μSv/h |
|
| Protection Mode |
Protection tunnel |
|
| Main Material |
SUS304 |
|
| Surface Treatment |
Mirror polish/ Sand blasting |
|
*Packing

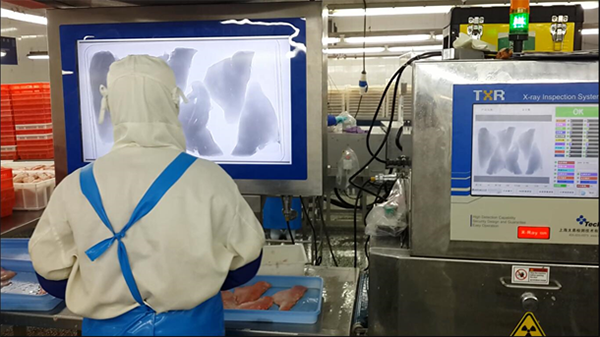

*Factory application
