Shanghai Automatic check weigher food Package Conveyor Online Checkweigher for Big Packages
*Product Introduction:
On-line high-speed, high-sensitivity, high-stability dynamic weight detection system, which is suitable for packaging product weight detection to ensure quality standards. Widely used in online weight check for big carton/bag packed food, agricultural products, consumable and other industries.
*Advantages:
1.High speed, high sensitivity, high stability dynamic weight checking
2.Buckle design, easy to clean, simple to disassemble
3.7-inch touch screen, user-friendly function
Multi language
Data storage
Large memory capacity
4.Accurate and efficient rejecter system
5.Brief user parameter setting, easy for operation
6.Good environmental adaptability and stability
*Parameter
| Model |
IXL-500 |
IXL-600 |
|
| Detecting Range |
0.5~25kg |
1~50kg |
|
| Scale Interval |
1g |
5g |
|
| Accuracy(3σ) |
±2g |
±5g |
|
| Max Speed |
75pcs/min |
50pcs/min |
|
| Belt Speed |
60m/min |
60m/min |
|
| Weighed Product Size | Width |
490mm |
590mm |
| Length |
700mm |
1000mm |
|
| Weighed Platform Size | Width |
500mm |
600mm |
| Length |
800mm |
1200mm |
|
| Operation Screen |
7” touch screen |
||
| Product Storage Quantity |
100 kinds |
||
| Segments Number of Sorting |
1 |
||
| Rejecter Mode |
Rejecter optional |
||
| Power Supply |
220V（Optional） |
||
| Degree of Protection |
IP30/IP54 |
||
| Main Material |
Mirror Polished/Sand blasted |
||
*Note:
1.The technical parameter above namely is the result of accuracy by checking only the test sample on the belt. The accuracy would be affected according to the detecting speed and product weight.
2.The detecting speed above will be affected according to the product size to be checked.
3.Requirements for different sizes by customers can be fulfilled.
*Packing
*Factory Tour

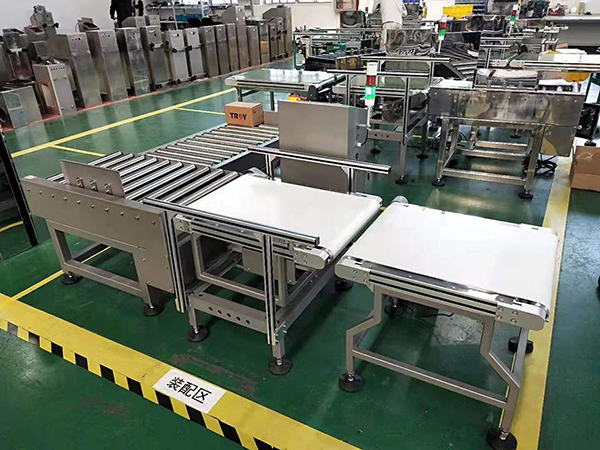

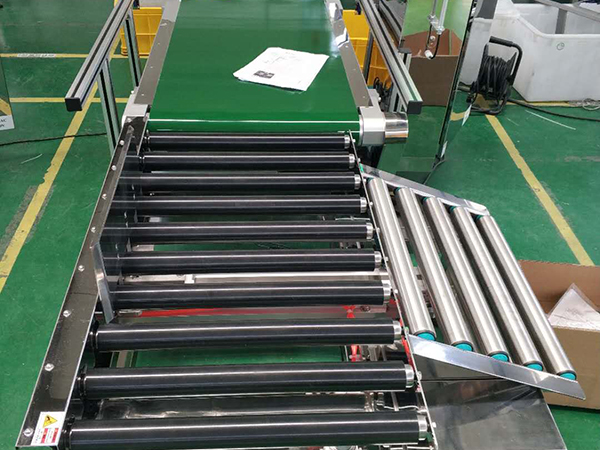

Checkweigher with Heavy Pusher Rejector
Infeeder+IXL500600+Heavy Pusher Rejector

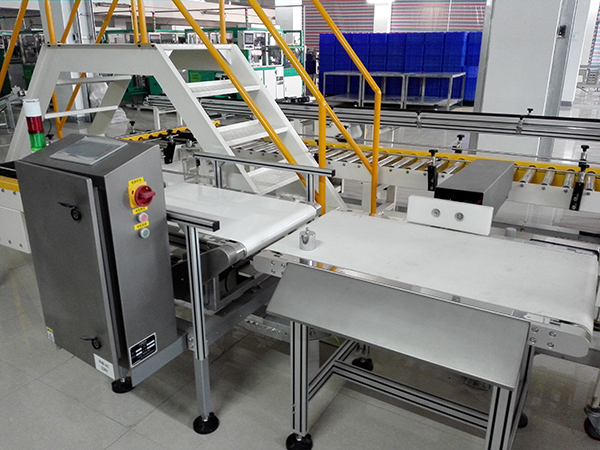

*Customer application
