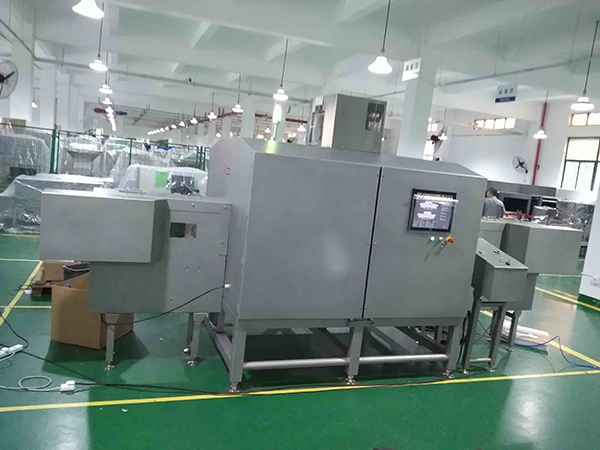

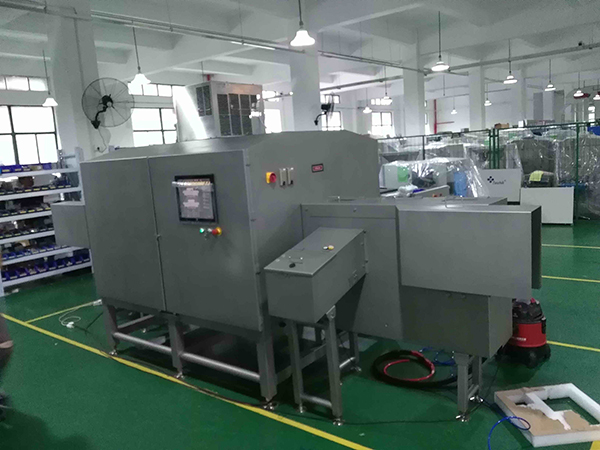

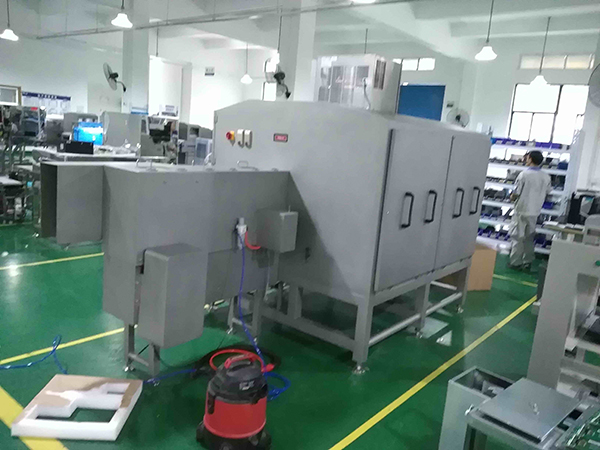

Triple-beam X-ray Inspection System for Bottles, Jars and Cans

Short Description:

In production, there might be different types of contaminants in top, middle and bottom area. If the products go into market with contaminants, customer will complain, ask for high compensation, or to law, which will damage the reputation of the company and sometimes, the company needs to pay high money for it. Triple beam X-ray inspection system are the most reliable X-ray inspection system with “adjustable point of view” on 3 X-ray beams for any kind of jars, bottles, tins, etc. Triple beam X-ray inspection system are with three X-ray Beams ensure high detection accuracy Triple beam X-ray i


Product Detail

Video

Product Tags

*Product Introduction:


Triple beam X-ray inspection system are the most reliable X-ray inspection system with “adjustable point of view” on 3 X-ray beams for any kind of jars, bottles, tins, etc.
Triple beam X-ray inspection system are with three X-ray Beams ensure high detection accuracy
Triple beam X-ray inspection system are with three X-ray Beams avoid inspection blind area

*Parameter


Model

TXR-20250

X-ray Tube

MAX. 120kV, 480W (three for each)

Max Detecting Width

160mm

Max Detecting Height

260mm

Best Inspection Sensitivity

Stainless steel ball Φ0.4mm

Stainless steel wire Φ0.2*2mm

Ceramic/Ceramic ball Φ1.0mm

Conveyor Speed

10-60m/min

O/S

Windows 7

Protection Method

Protective tunnel

X-ray Leakage

< 0.5 μSv/h

IP Rate

IP54 (Standard), IP65 (Optional)

Working Environment

Temperature: -10~40℃

Humidity:30~90%, no dew

Cooling Method

Industrial air conditioning

Rejecter Mode

Push rejecter

Air Pressure

0.8Mpa

Power Supply

4.5kW

Main Material

SUS304

Surface Treatment

Mirror polished/Sand blasted

*Note


The technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt. The actual sensitivity would be affected according to the products being inspected.

*Packing


3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

*Factory Tour


3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328
