Color Sorting Grading Machine Small Rice Color Sorter Machine

Short Description:

echik provides optical sorting solutions for grain & food processors who demand the highest standards of quality and safety. With a focus on precision sorting and consistent yield, Techik optical sorters meet the requirements of small, medium and large processors. Solutions are offered for various purpose and applications.


Product Detail

Product Tags

*Ensuring pure and safe food with Advance Sorting Technology!


Techik provides optical sorting solutions for grain & food processors who demand the highest standards of quality and safety. With a focus on precision sorting and consistent yield, Techik optical sorters meet the requirements of small, medium and large processors. Solutions are offered for various purpose and applications.

*APPLICATION

Rice, grain, pulses, peanut, soybean, seeds, spices, cashew, coffee beans, snacks, plastics, minerals, etc.

CONFIGURATION & TECHNOLOGY

EJECTOR 64/126/198…../640
Smart HMI True Color 15” Industrial Human Machine Interface
Camera High resolution CCD; Industrial wide-angle low-distortion LENs; Ultra-clear imaging
Intelligent Algrithm Own proprietary industrial leading software and algrithm
Simultaneous Grading Strong simultaneous color sorting+ sizing and grading capabilities
Consistency and Reliability Featuring broadband cold led illumination, long-life serviceable ejectors, Unique optical system, the MULTIFUNCTION SERIES sorter delivers a consistent sorting performance and reliable operation in the long run

*Parameter


Model

Voltage

Main Power (kw)

Air Consumption (m3/min)

Throughput (t/h)

Net Weight (kg)

Dimension(LxWxH)(mm)

TCS+-2T

180~240V,50HZ

1.4

1.2

1~2.5

615

1330x1660x2185

TCS+-3T

2.0

2.0

2~4

763

1645x1660x2185

TCS+-4T

2.5

2.5

3~6

915

2025x1660x2185

TCS+-5T

3.0

3.0

3~8

1250

2355x1660x2185

TCS+-6T

3.4

3.4

4~9

1450

2670x1660x2185

TCS+-7T

3.8

3.8

5~10

1650

2985x1660x2195

TCS+-8T

4.2

4.2

6~11

1850

3300x1660x2195

TCS+-10T

4.8

4.8

8~14

2250

4100x1660x2195

Note

The parameter based on test results on peanut with around 2% contamination; It varies depending upon different input and contamination.

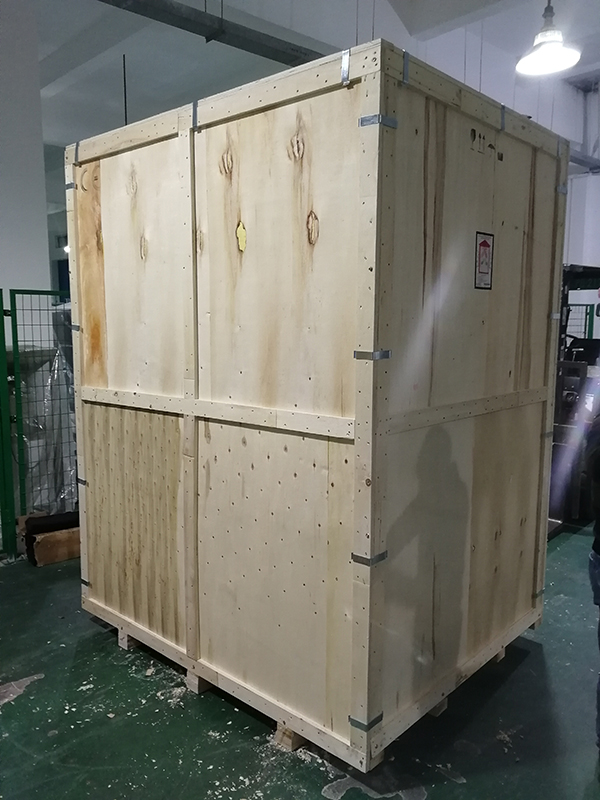

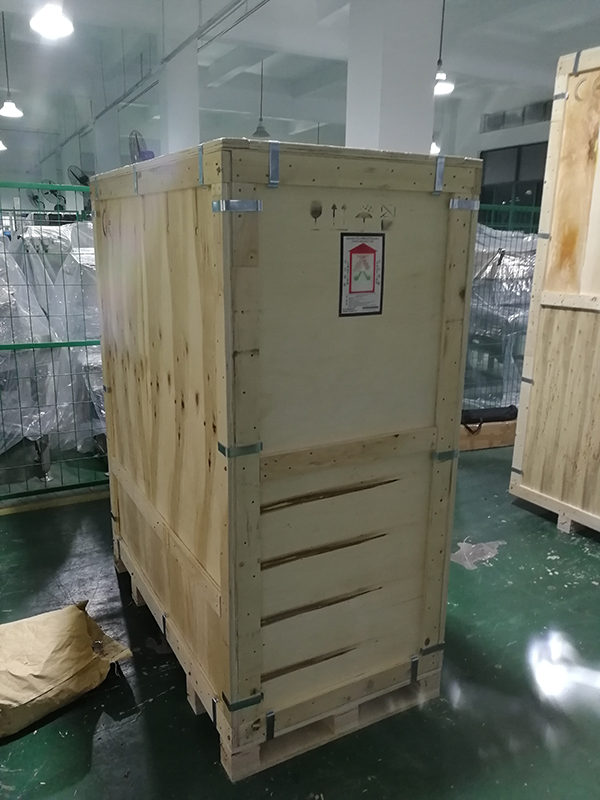

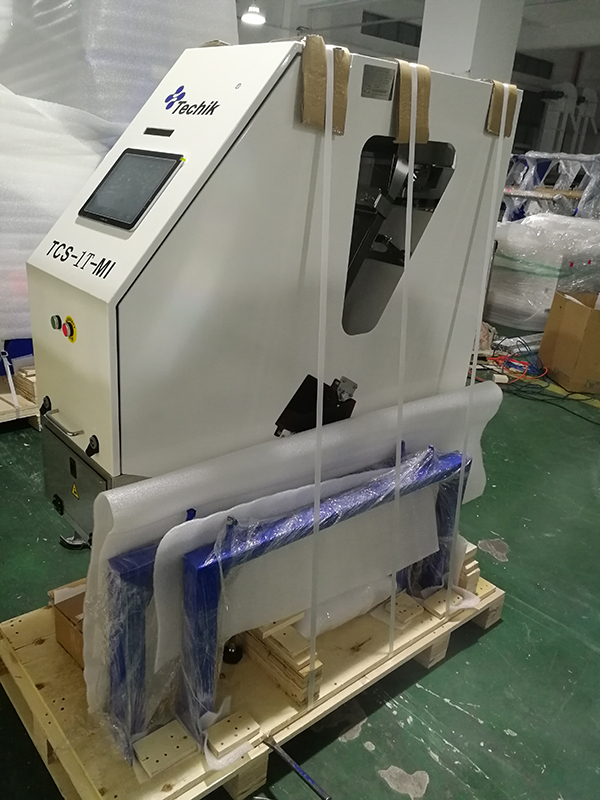

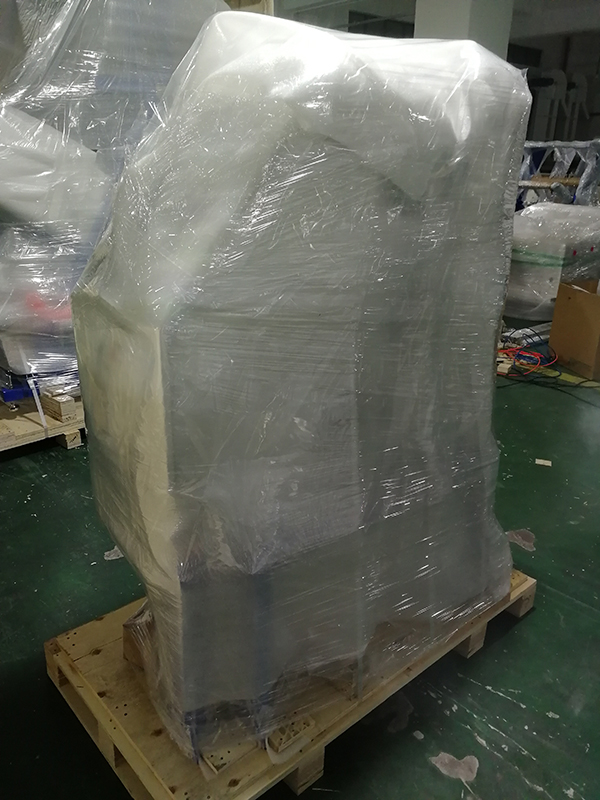

*Packing


3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

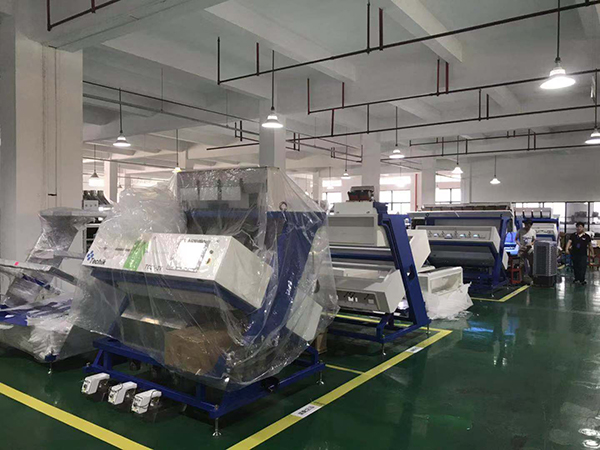

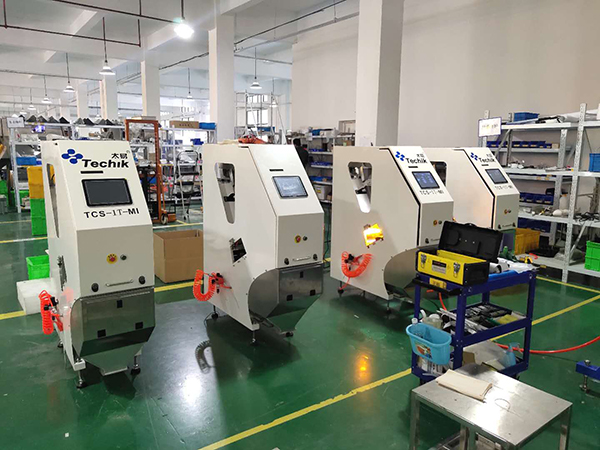

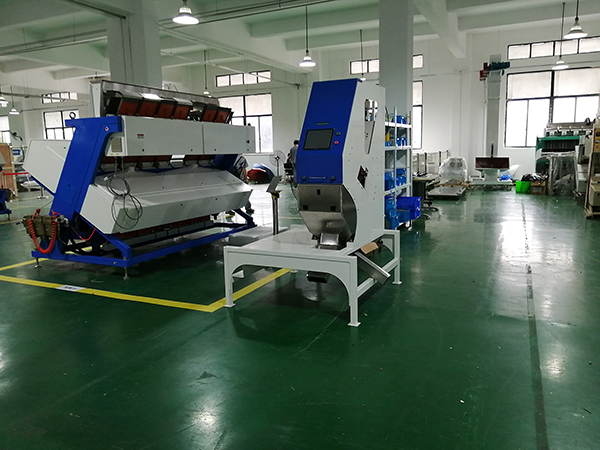

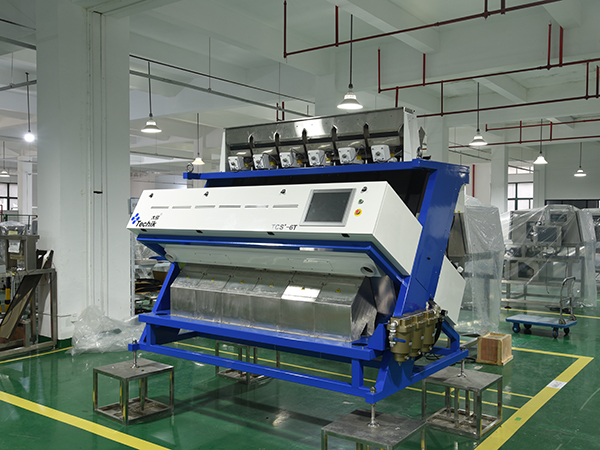

*Factory Tour


3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328
