Peanuts Nuts Optical Color Sorter Sorting Machine
*Feature of Techik Peanut Optical Color Sorter/Nuts Color Sorting Machine
Techik peanut color sorters can sort out moldy peanut, light-colored peanut, single peanut kernel, sprouted peanut kernel, immature peanut kernel, heterogeneous peanut kernel, spoiled peanuts, insects, insect droppings, straw.

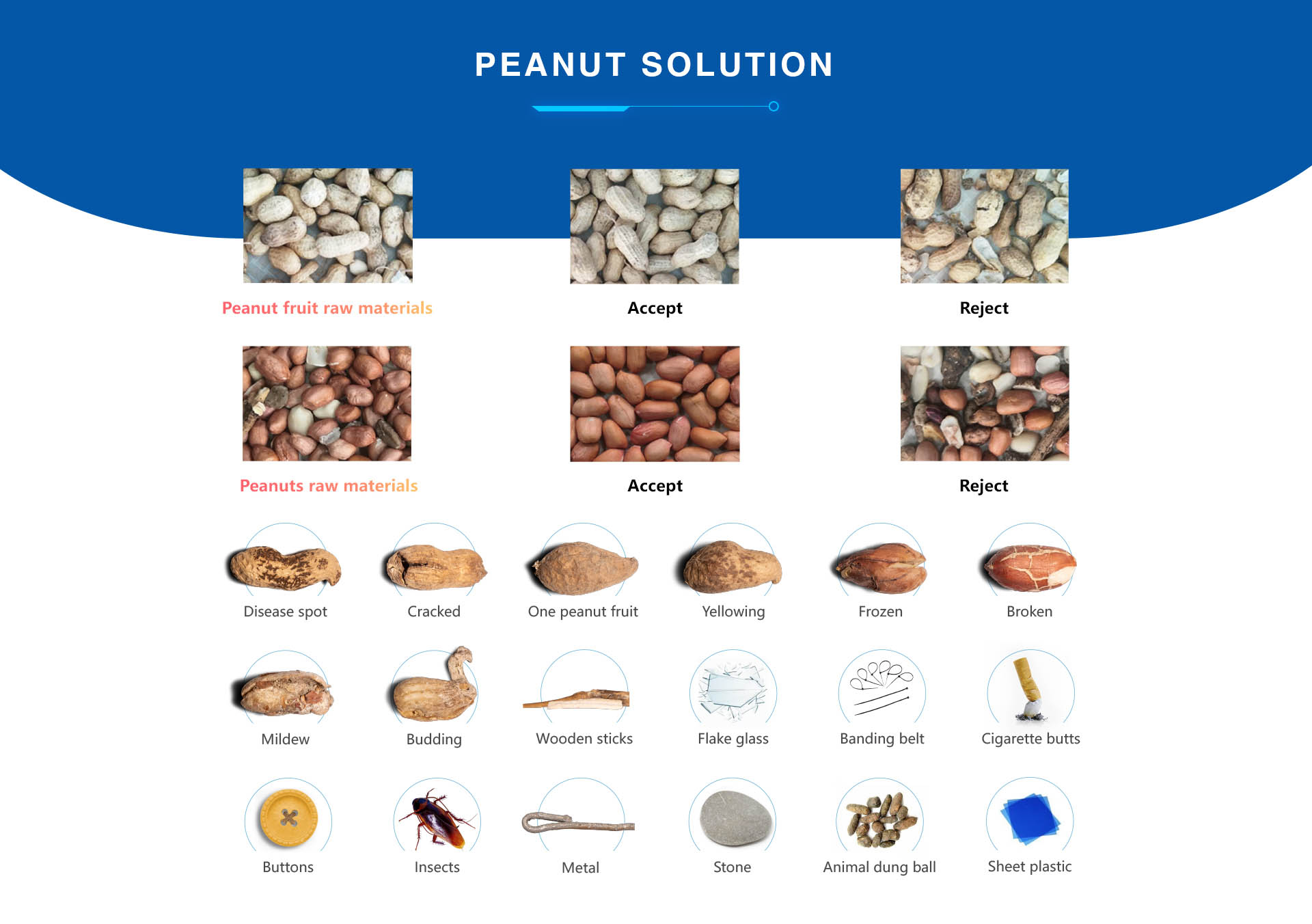

As what can be seen in the below sorting chart, either peanut with or without shell can be sorted in a good performance. The accept and reject peanuts are for your reference.
Disease sport, cracked, single kernel, frozen peanuts, mildew peanut, budding peanut and etc. can be sorted out fast and precisely。
*APPLICATION
Besides peanuts, grain, soybean, spices, coffee beans, beans and etc. can be sorted by Techik chute or belt color sorters.
|
CONFIGURATION & TECHNOLOGY |
|
| EJECTOR | 64/126/198…../640 |
| Smart HMI | True Color 15” Industrial Human Machine Interface |
| Camera | High resolution CCD; Industrial wide-angle low-distortion LENs; Ultra-clear imaging |
| Intelligent Algrithm | Own proprietary industrial leading software and algrithm |
| Simultaneous Grading | Strong simultaneous color sorting+ sizing and grading capabilities |
| Consistency and Reliability | Featuring broadband cold led illumination, long-life serviceable ejectors, Unique optical system, the MULTIFUNCTION SERIES sorter delivers a consistent sorting performance and reliable operation in the long run |
*Parameter
|
Model |
Voltage |
Main Power (kw) |
Air Consumption (m3/min) |
Throughput (t/h) |
Net Weight (kg) |
Dimension(LxWxH)(mm) |
|
TCS+-2T |
180~240V,50HZ |
1.4 |
≤1.2 |
1~2.5 |
615 |
1330x1660x2185 |
|
TCS+-3T |
2.0 |
≤2.0 |
2~4 |
763 |
1645x1660x2185 |
|
|
TCS+-4T |
2.5 |
≤2.5 |
3~6 |
915 |
2025x1660x2185 |
|
|
TCS+-5T |
3.0 |
≤3.0 |
3~8 |
1250 |
2355x1660x2185 |
|
|
TCS+-6T |
3.4 |
≤3.4 |
4~9 |
1450 |
2670x1660x2185 |
|
|
TCS+-7T |
3.8 |
≤3.8 |
5~10 |
1650 |
2985x1660x2195 |
|
|
TCS+-8T |
4.2 |
≤4.2 |
6~11 |
1850 |
3300x1660x2195 |
|
|
TCS+-10T |
4.8 |
≤4.8 |
8~14 |
2250 |
4100x1660x2195 |
|
|
Note |
The parameter based on test results on peanut with around 2% contamination; It varies depending upon different input and contamination. | |||||
