TXR-P X-Ray Inspection System for Pumped Products
X-Ray Inspection System for Sauces, Liquids and Pumped Products
The Techik TXR-P Series X-Ray Inspection System is designed for in-line inspection of sauces, oils, beverages and other pumpable products. A straight-through product path connects directly to existing pipelines, allowing liquids, pastes and semi-solid products to be inspected for high-density contaminants during production.
The system detects contaminants such as metal, glass and ceramic. Its compact configuration can be matched to pipe diameter, product flow, reject method and cleaning requirements, supporting practical integration into new or existing production lines.
Key Benefits
• High-sensitivity detection of metal, glass, ceramic and other high-density contaminants.
• Designed for pumpable liquid, paste and semi-solid products.
• Straight-through product path for direct in-line pipeline integration.
• Quick-release pipeline design for easier disassembly and routine cleaning access.
• Flexible configuration around pipe diameter, throughput, reject method and connection layout.
• Three standard pipe sizes for high-throughput applications: 60, 80 and 100 mm.
Applications
The TXR-P Series is suitable for sauces, oils, beverages and other liquid or semi-liquid products transported through a pipeline. It supports paste, semi-solid and liquid product forms. Final configuration should be selected according to the product formulation, flow characteristics and production process.
Detection Principle and Product Rejection

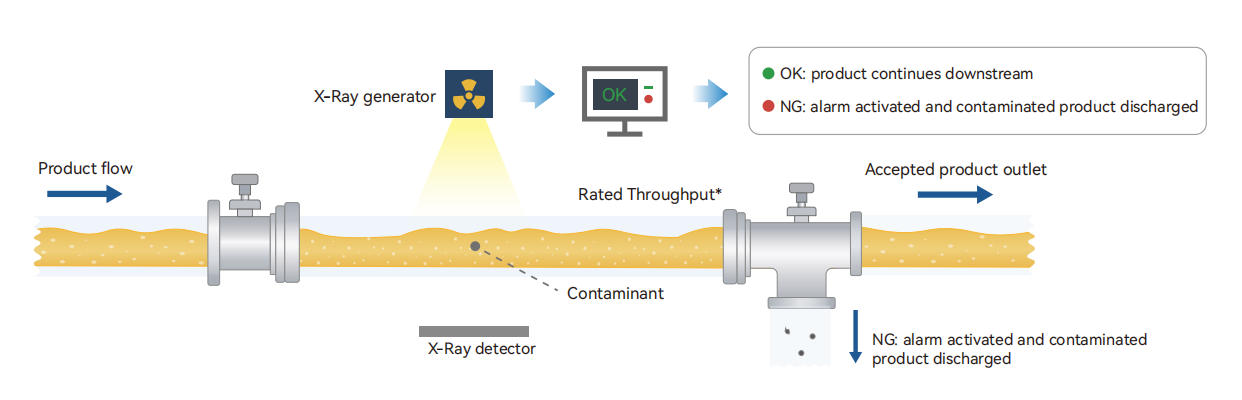

Pumped product enters the inspection area through the straight-through pipeline. The X-ray generator and detector examine the product flow for high-density foreign material. The system then handles the result as follows:
1. Product flow passes through the X-ray inspection area.
2. The X-ray generator and detector analyze the product for contaminants.
3. OK: accepted product continues downstream through the product outlet.
4. NG: an alarm is activated and the contaminated product is discharged.
A three-way arc-valve reject system can be configured for contaminated-product discharge. Pipe length, reject-valve position, connection type and discharge arrangement are application-specific. Rated throughput requires the extended-buffer-pipe discharge configuration.
Inspection Capability
| Inspection Need | TXR-P Capability | Application Consideration |
| Metal contaminants | X-ray detection in pumped products | Actual sensitivity must be confirmed by product testing |
| Glass and ceramic contaminants | Detection of high-density foreign material | Product composition and operating conditions affect performance |
| Pumpable product inspection | Liquids, pastes and semi-solid products | Match pipe diameter, flow and reject configuration to the application |
Model Selection
| Model | Internal Pipe Diameter | Rated Throughput* |
| TXR-P2-60 | 60 mm | 4 t/h |
| TXR-P2-80 | 80 mm | 9 t/h |
| TXR-P2-100 | 100 mm | 14 t/h |
* Rated throughput is calculated using water or a product of similar density and requires the extended-buffer-pipe discharge configuration. Actual throughput depends on product density, viscosity, temperature, particle or air-bubble content, and discharge method.
Technical Specifications
| Specification | TXR-P2-60 | TXR-P2-80 | TXR-P2-100 |
| X-Ray Tube | 210 W / 350 W | 210 W / 350 W | 210 W / 350 W |
| Inner Diameter | 60 mm | 80 mm | 100 mm |
| Rated Throughput* | 4 t/h | 9 t/h | 14 t/h |
| SUS304 Ball Sensitivity (Ø) | ≥ 0.3 mm | ≥ 0.3 mm | ≥ 0.3 mm |
| SUS304 Wire Sensitivity | ≥ 0.2 × 2 mm | ≥ 0.2 × 2 mm | ≥ 0.2 × 2 mm |
| Glass Ball Sensitivity (Ø) | ≥ 0.8 mm | ≥ 0.8 mm | ≥ 0.8 mm |
| Ceramic Ball Sensitivity (Ø) | ≥ 0.8 mm | ≥ 0.8 mm | ≥ 0.8 mm |
| Common Specification | Value |
| Power Supply | AC 220 V, 1 kVA, 50/60 Hz |
| Air Supply | 0.6 MPa |
| Product Form | Paste / Semi-solid / Liquid |
| Conveyor Material | SUS304 and food-grade polymer materials |
| Protection Rating | Product tunnel IP66 |
| Interfaces | LAN port and USB port |
Specification Notes
• Sensitivity values were obtained under no-product test conditions. Actual performance depends on the product and must be confirmed by product testing.
• The specifications shown are for standard models. Alternative dimensions and special configurations are available on request.
• Specifications are subject to change without notice. Refer to the delivered machine and consult your Techik sales representative for details.
• Dimensions are for standard models; actual dimensions may vary for special or customized systems.
• Product-contact parts are supplied in 304 stainless steel as standard. 316L stainless steel and food-grade sealing materials are available as options.
• Rated throughput is calculated using water or a product of similar density. Actual throughput depends on product density, viscosity, temperature, particle or air-bubble content, and the discharge method.
• Rated throughput requires the extended-buffer-pipe discharge configuration. Pipe length, reject-valve position and connection type are application-specific.
Designed for Pipeline Integration and Cleaning
Straight-through integration
The compact, straight-through product path supports installation around the required pipe diameter, flow rate and connection layout. The inspection and reject arrangement should be selected together for the intended process.
Quick-release access
Quick-release pipeline connections facilitate disassembly for cleaning. Cleaning procedures and hygiene requirements should be considered when defining the final system configuration.
Product-contact materials
Product-contact parts are supplied in 304 stainless steel as standard. Optional 316L stainless steel and food-grade sealing materials are available for application-specific requirements. The conveying path uses SUS304 and food-grade polymer materials.
Plant connectivity and protection
LAN and USB ports provide connection interfaces. The product tunnel has an IP66 protection rating.
Product Details
• Three-way arc-valve reject system for separating contaminated product from accepted flow.
• Quick-release pipeline design for routine access and cleaning.

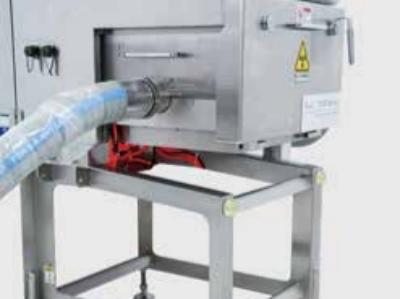

• Food-grade hygienic construction for liquid and semi-liquid processing applications.

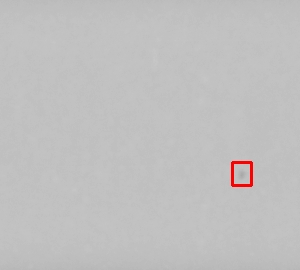

• Contaminant detection display for inspection-result visualization. Inspection images are illustrative and do not guarantee sensitivity for every product.
Frequently Asked Questions
It is designed for sauces, oils, beverages and other pumpable liquid or semi-liquid products, including pastes and semi-solid formulations.
The TXR-P Series is designed to detect high-density contaminants such as metal, glass and ceramic. Actual sensitivity depends on the product and must be confirmed by product testing.
The listed 4, 9 and 14 t/h values are based on water or a product of similar density and require the extended-buffer-pipe discharge configuration. Actual throughput depends on viscosity, density, temperature, particle or air-bubble content, and discharge method.
When contamination is detected, an alarm is activated and the affected product is discharged. A three-way arc-valve reject system is available; the final reject arrangement and pipeline connections are application-specific.
No. Product-contact parts are supplied in 304 stainless steel as standard. 316L stainless steel and food-grade sealing materials are optional.
Yes. Pipe diameter, throughput, reject method, cleaning requirements and connection layout can be considered in the configuration. Alternative dimensions and special configurations are available on request.
Request a Product Assessment
To define the appropriate TXR-P configuration, share the product type, density, viscosity, operating temperature, particle or air-bubble content, required throughput and pipeline diameter. Also provide the target contaminants, connection layout, reject requirements, cleaning process and preferred product-contact materials.
